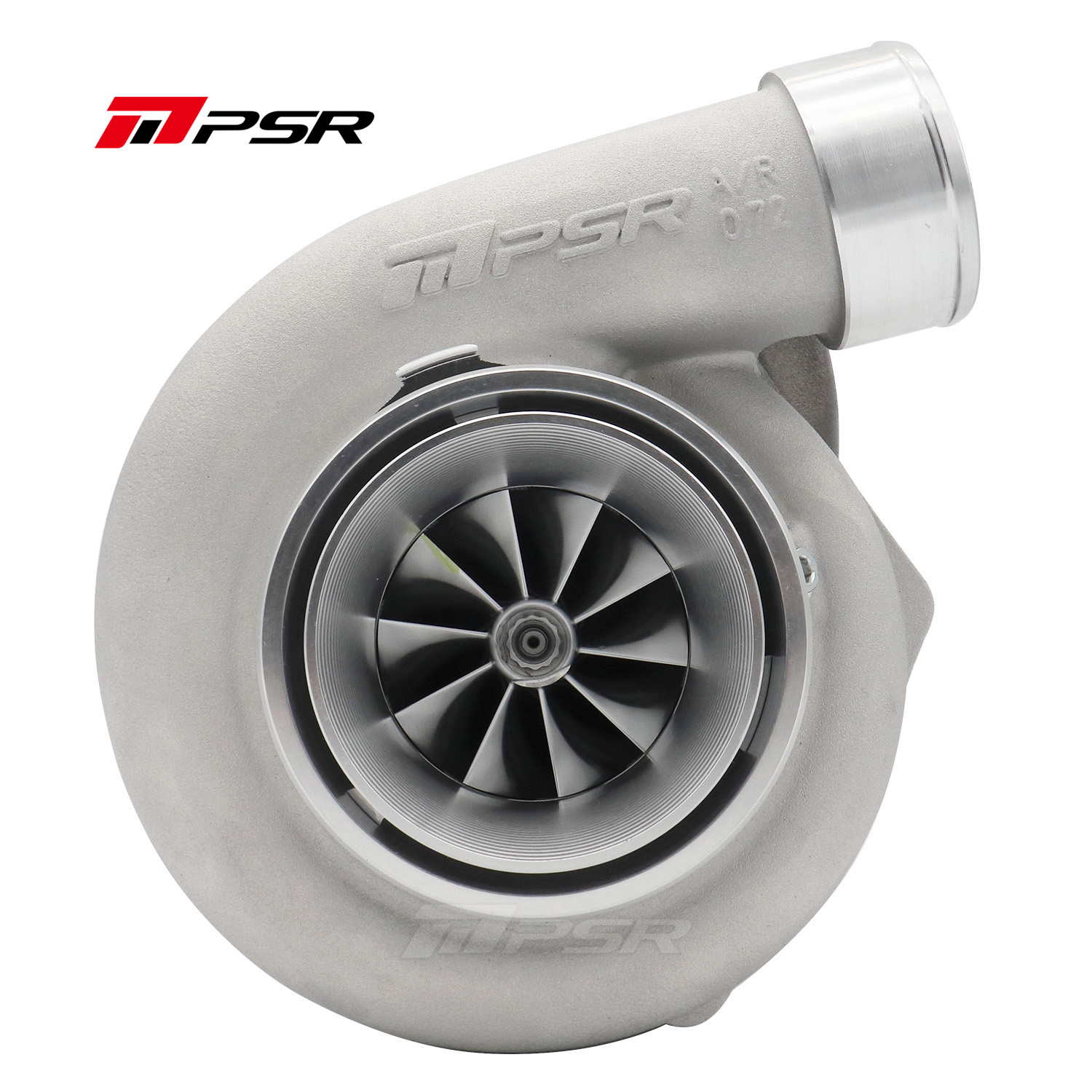

PSR3582 GEN2 Dual Ball Bearing Turbocharger

$449.99$944.99

  • Dual Ceramic Ball Bearing System
  • 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c Gen2 9 Blade Turbine Wheel
  • Gen2 Cover Integrated with the Speed Sensor Port
  • 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet etc. turbine housings in option
  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP
  • Horsepower rate: 450-900, Engine displacement range: 2.0L-4.5L

Description

  • Compressor Wheel: 66*82mm
  • Turbine Wheel: 68*62mm
  • Compressor Inlet: 4.0 Hose
  • Compressor Outlet: 2.5 Hose
  • Turbine Inlet: T3, T4, or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

Additional information

Compressor Housing Options

Standard, T51R Mod, W/O Compressor Housing

Turbine Housing Options

T3 .63 V-BAND, T3 .82 V-BAND, T3 1.06 V-BAND, 1.01 DUAL V-BAND, 1.01 DUAL V-BAND+T4 Adapter, 0.83 DUAL V-BAND, T4 .82 V-BAND, T4 Divided A/R0.85, .82 STAINLESS STEEL DUAL V-BAND, .82 STAINLESS STEEL DUAL V-BAND+T25 Adapter, .82 STAINLESS STEEL DUAL V-BAND+T3 Adapter, .82 STAINLESS STEEL DUAL V-BAND+T4 Adapter, .64 STAINLESS STEEL DUAL V-BAND, .64 STAINLESS STEEL DUAL V-BAND+T25 Adapter, .64 STAINLESS STEEL DUAL V-BAND+T3 Adapter, .64 STAINLESS STEEL DUAL V-BAND+T4 Adapter, 1.03 STAINLESS STEEL DUAL V-BAND, 1.03 STAINLESS STEEL DUAL V-BAND+T25 Adapter, 1.03 STAINLESS STEEL DUAL V-BAND+T3 Adapter, 1.03 STAINLESS STEEL DUAL V-BAND+T4 Adapter, W/O Turbine Housing
