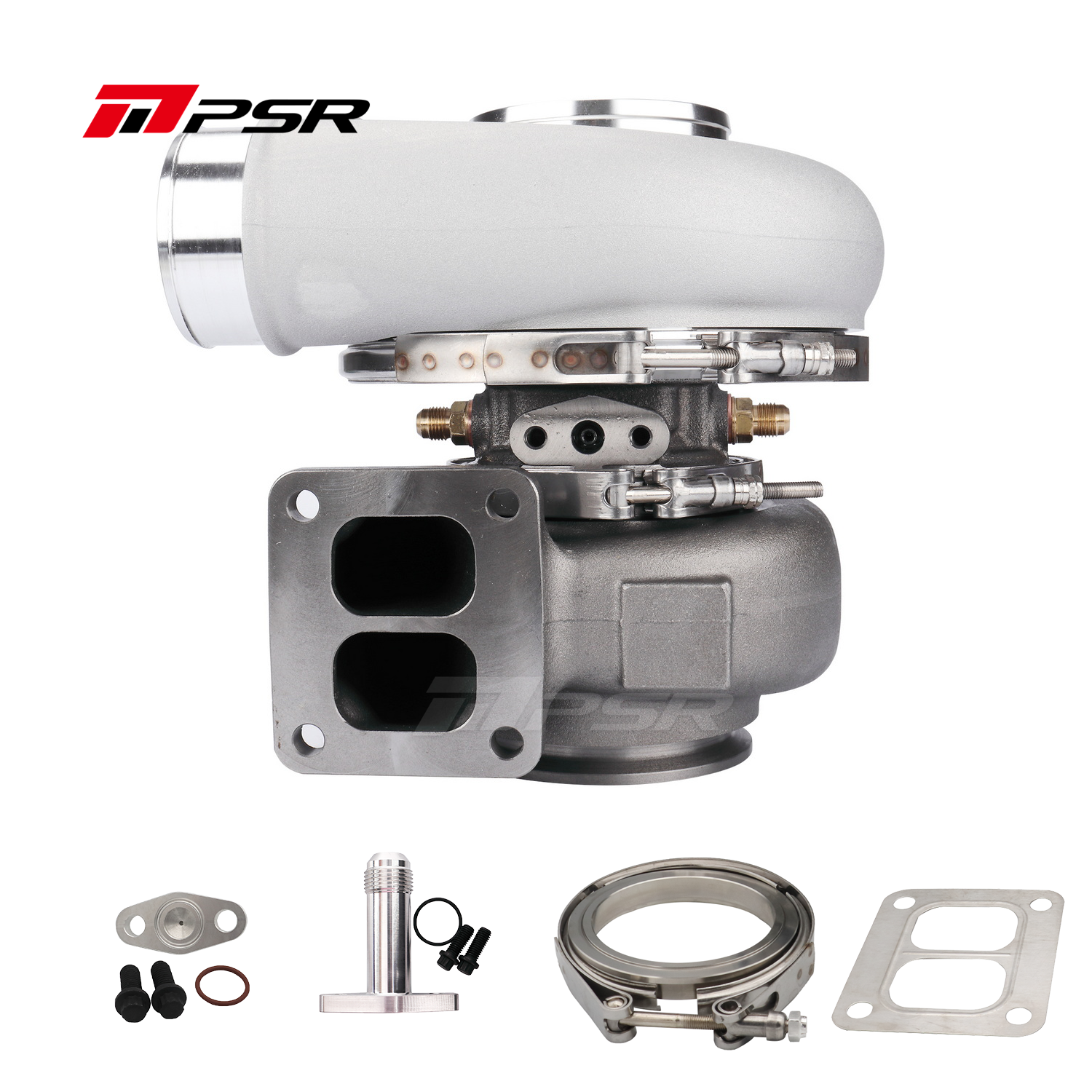

PSR 6270G Dual Ball Bearing Turbocharger HP Rating 900


  • Dual ceramic ball bearing with steel cage provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 62mm inducer 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade G-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
  • Water fittings included with the super core
  • 3 Options in Turbine Housing
  • HP rated at 900HP at the flywheel
  • Suitable engine size: 2.0-6.0L
SKU: N/A Category:


  • Compressor Wheel: 62.7*88mm
  • Turbine Wheel: 77*70mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ V-Band
  • Turbine Inlet: T4 divided
  • Turbine Outlet: 4″ V-Band
  • Water Ports: -6AN
  • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange )
  • Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
  • 3 Options in Turbine Housing: T4(Divided) 0.95 A/R, 1.06 A/R, Dual V-band 1.06 A/R

Additional information

Compressor Housing Options


Turbine Housing Options

T4 Divided Inlet, V-Band Outlet(fits 4'' OD tubing) 0.95A/R, T4 Divided Inlet, V-Band Outlet(fits 4'' OD tubing) 1.06A/R, V-Band Inlet(fits 3'' OD tubing), V-Band Outlet(fits 3.5'' OD tubing) 1.06A/R, V-Band Inlet + An Adapter(Vband to T4 Open), V-Band Outlet(fits 3.5'' OD tubing) 1.06A/R, Without Turbine Housing
