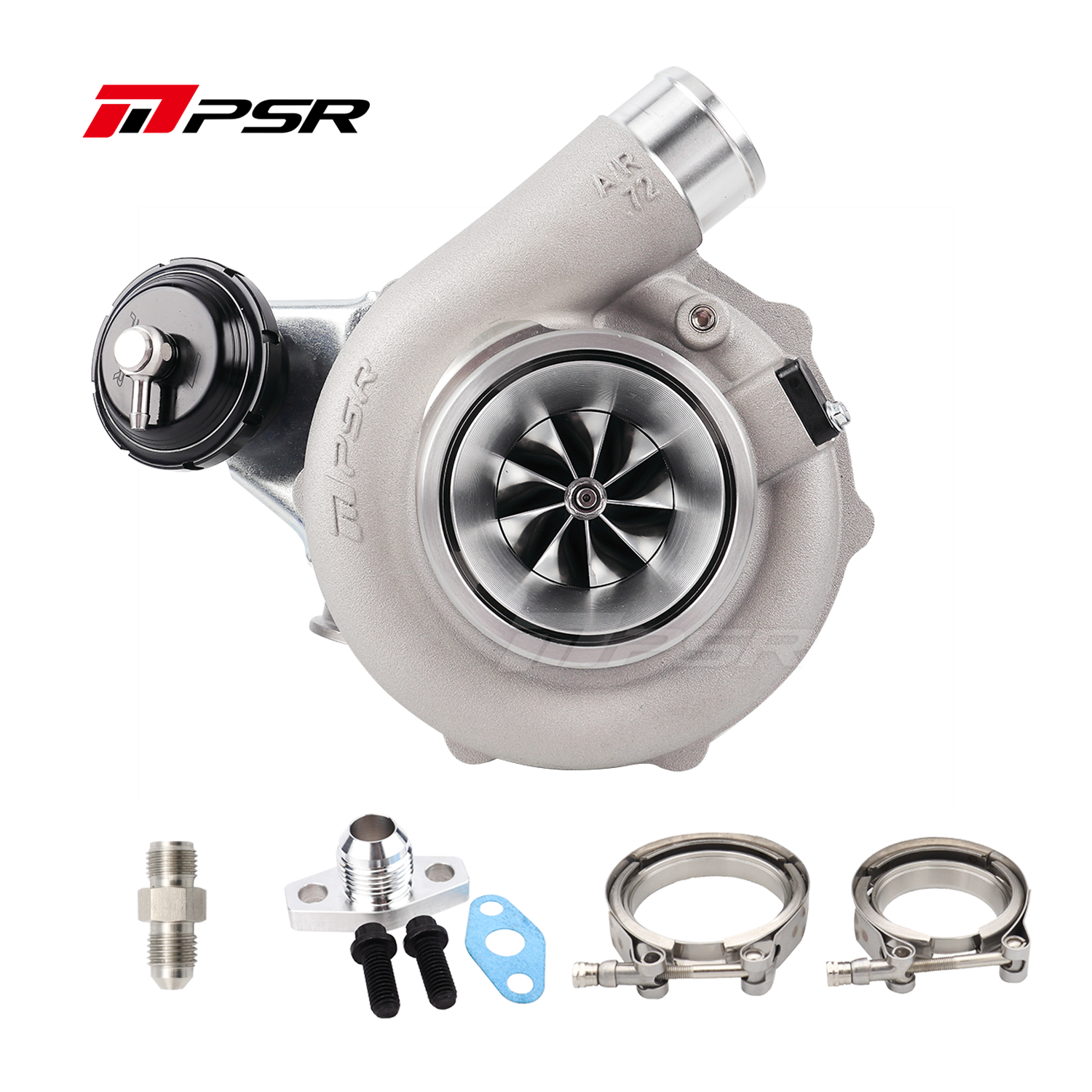

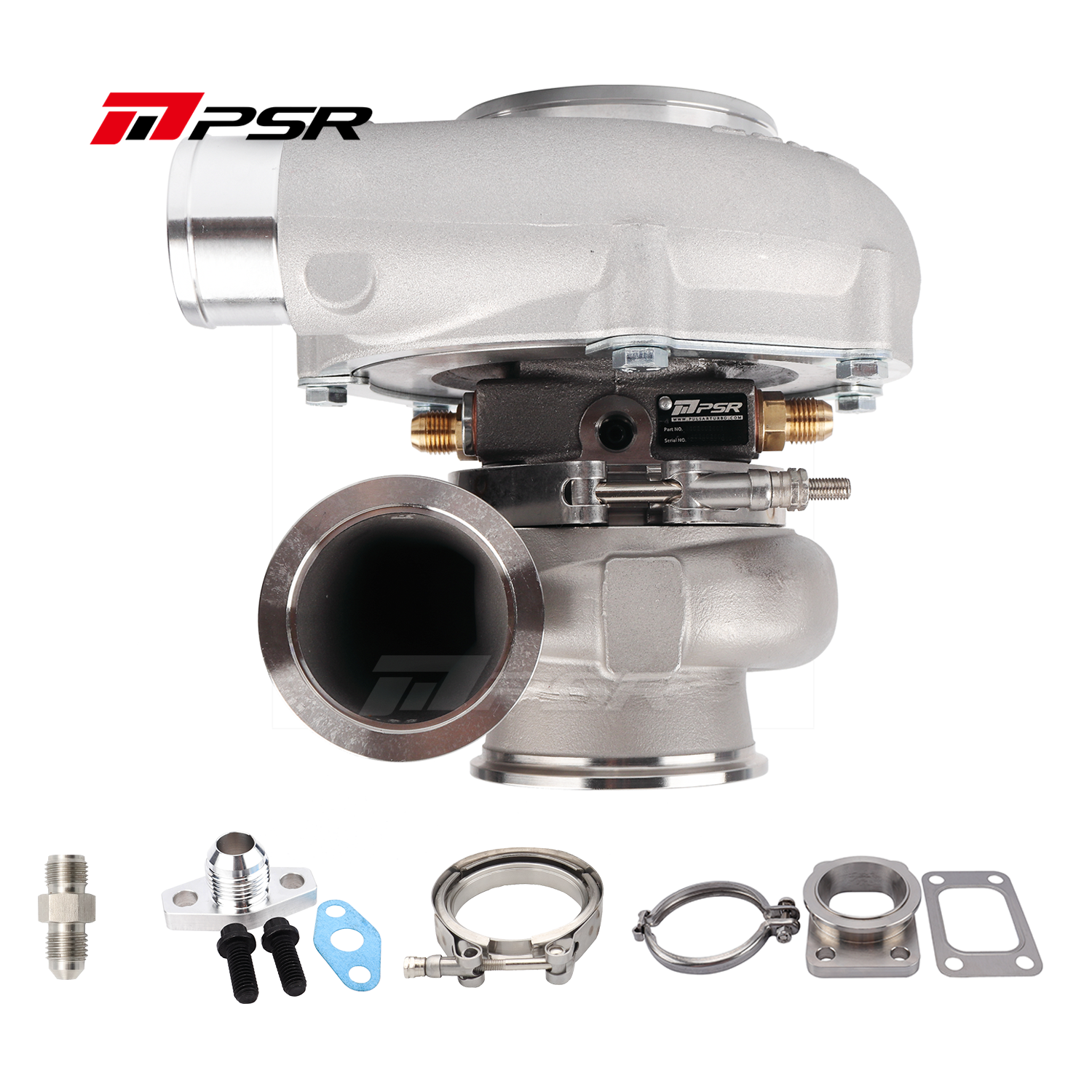

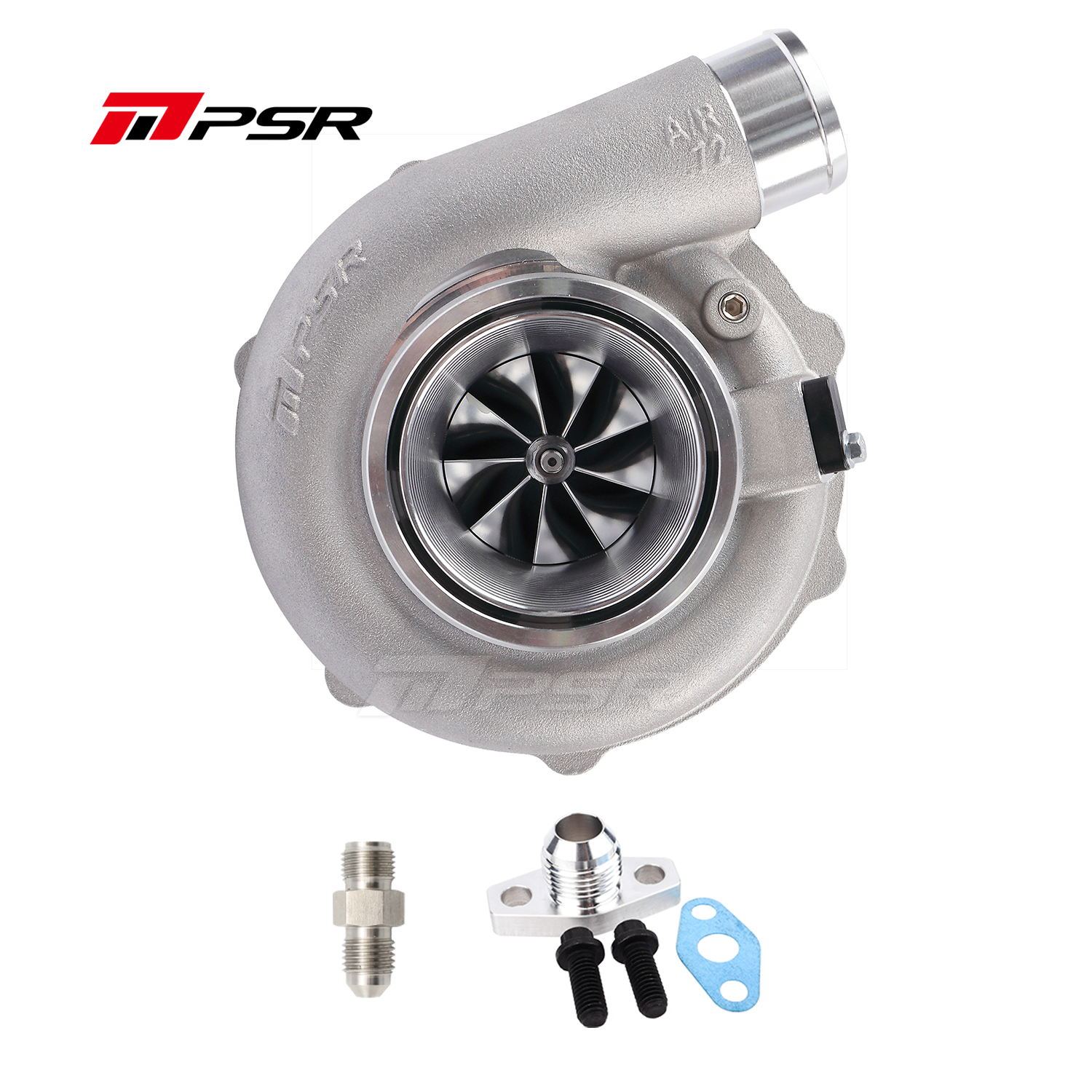

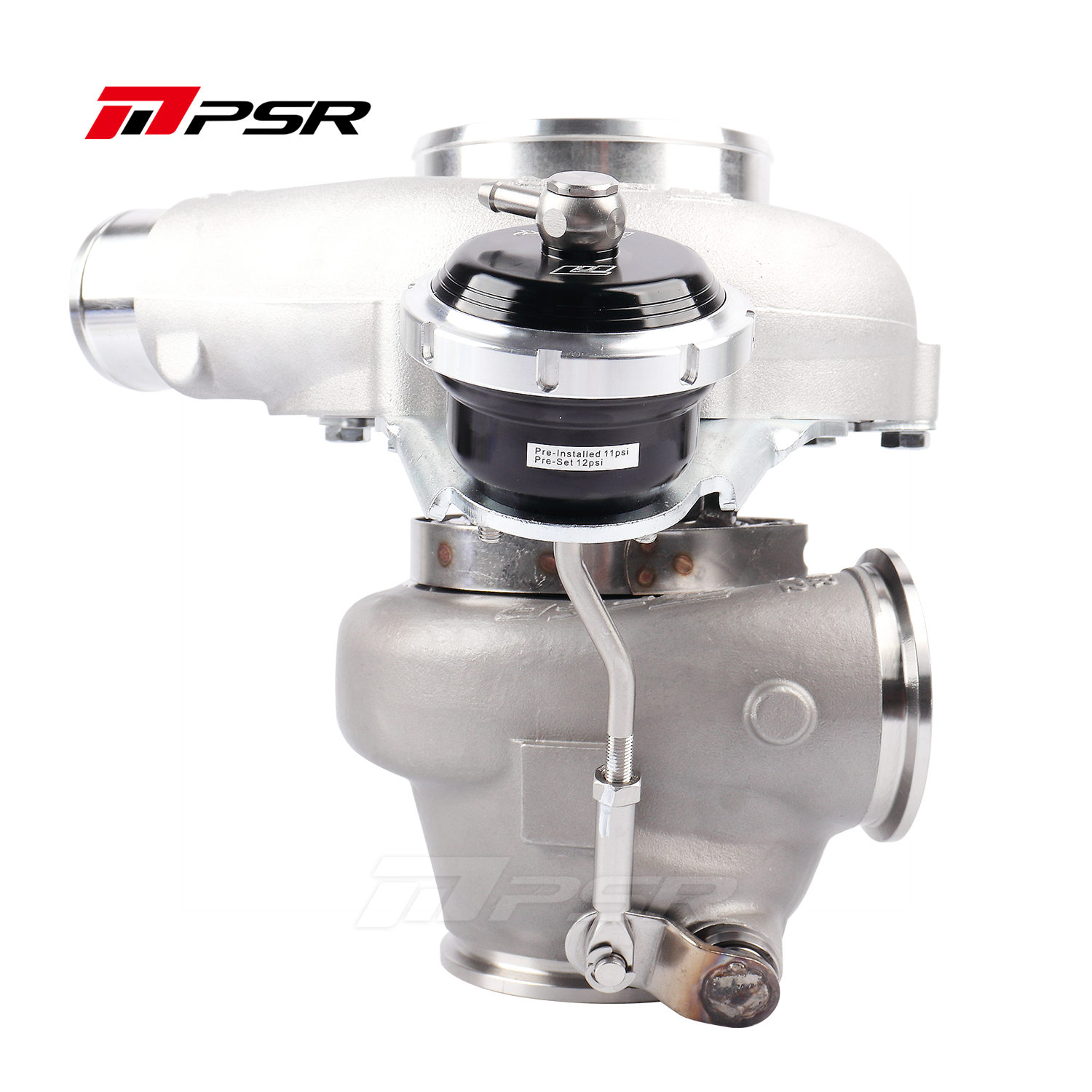

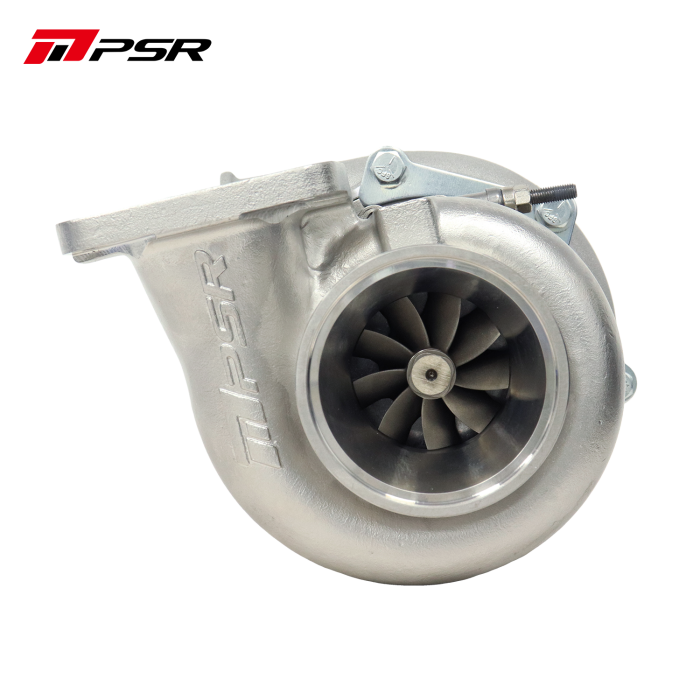

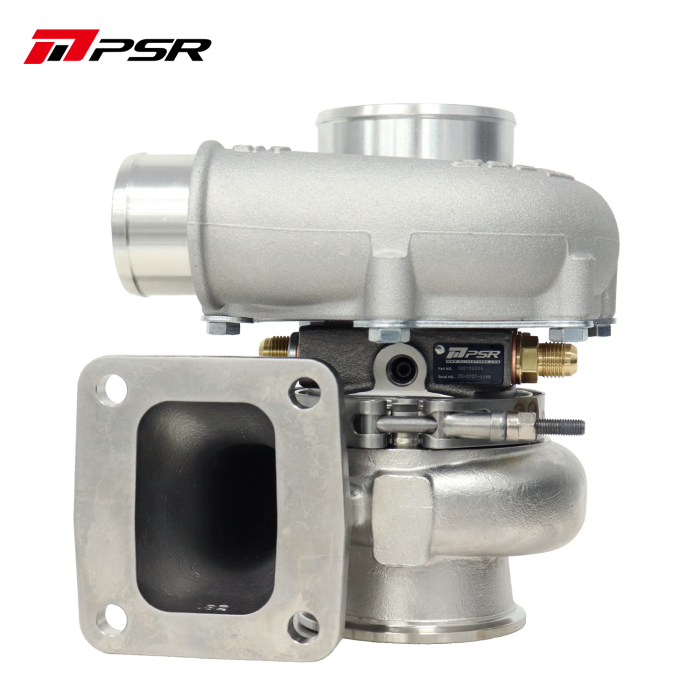

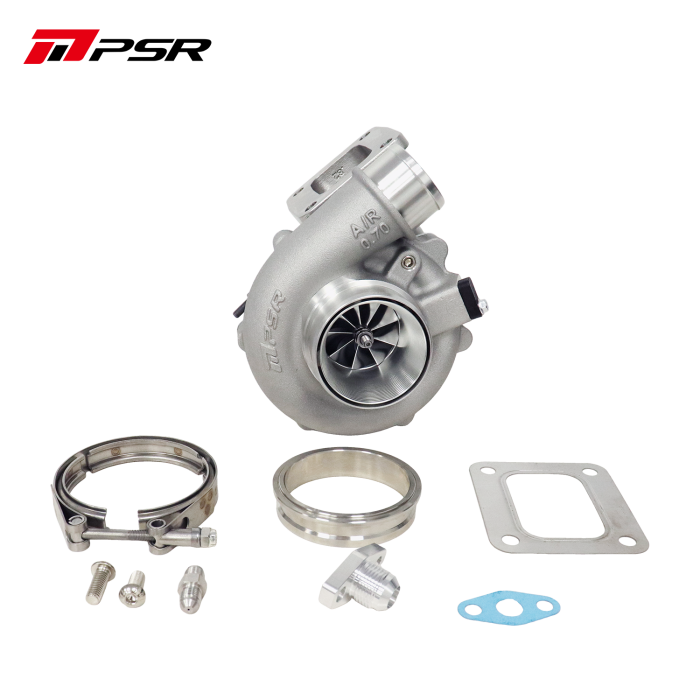

PSR Forward Rotation 5455G Dual Ball Bearing Turbocharger HP Rating 660

$799.99$1,199.99

  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade G-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

Description

  • Compressor Wheel: 54*67mm
  • Turbine Wheel: 60*55mm
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: T25, T3, T4 or Vband
  • Turbine Outlet: 3″ V-Band
  • Water Ports: 2-M14 X 1.5
  • Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
  • Oil Outlet: Std T3 Oil Drain Flange
  • 11 options of turbine housing: Dual vband 0.72A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T3 0.72A/R; T3 0.83A/R; T4 0.82A/R; T4 divided 0.85A/R;  Dual vband 0.49A/R IWG; Dual vband 0.72A/R IWG; Dual vband 0.92A/R IWG; T25 0.72A/R IWG;



Additional information

Compressor Housing Options

W/O Compressor Housing, Standard 0.70A/R 3‘’ Inlet, T51R Mod 3'' Inlet

Turbine Housing Options

W/O Turbine Housing, Dual Vband 0.72A/R without WG, DV .72A/R+An adapter Vband to T4, Dual Vband 0.83A/R, Dual Vband 1.01A/R, DV 1.01A/R+An adapter Vband to T25, DV 1.01A/R+An adapter Vband to T3, DV 1.01A/R+An adapter Vband to T4, T3 .72 V-Band, T3 .83 V-Band, T4 .82 V-Band, T4 Divided A/R0.85, Dual Vband 0.72A/R IWG, T25 .72 V-Band IWG, DV .72A/R IWG+An adapter Vband to T3, DV .72A/R IWG+An adapter Vband to T4, Dual Vband 0.49A/R IWG, Dual Vband 0.92A/R IWG, DV 0.49A/R IWG+An adapter Vband to T25, DV 0.49A/R IWG+An adapter Vband to T3, DV 0.92A/R IWG+An adapter Vband to T25, DV 0.92A/R IWG+An adapter Vband to T3, DV .92A/R IWG+An adapter Vband to T4
