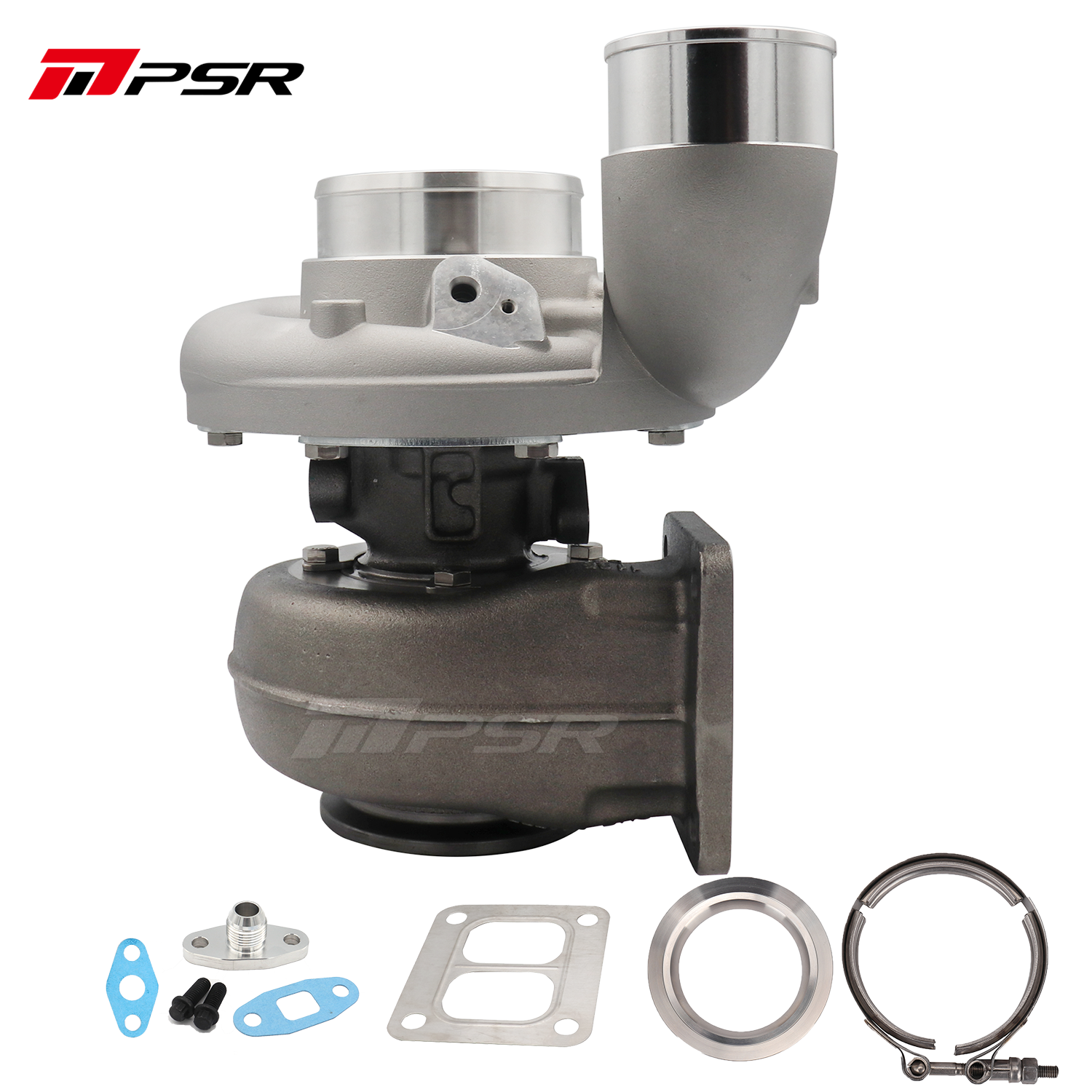

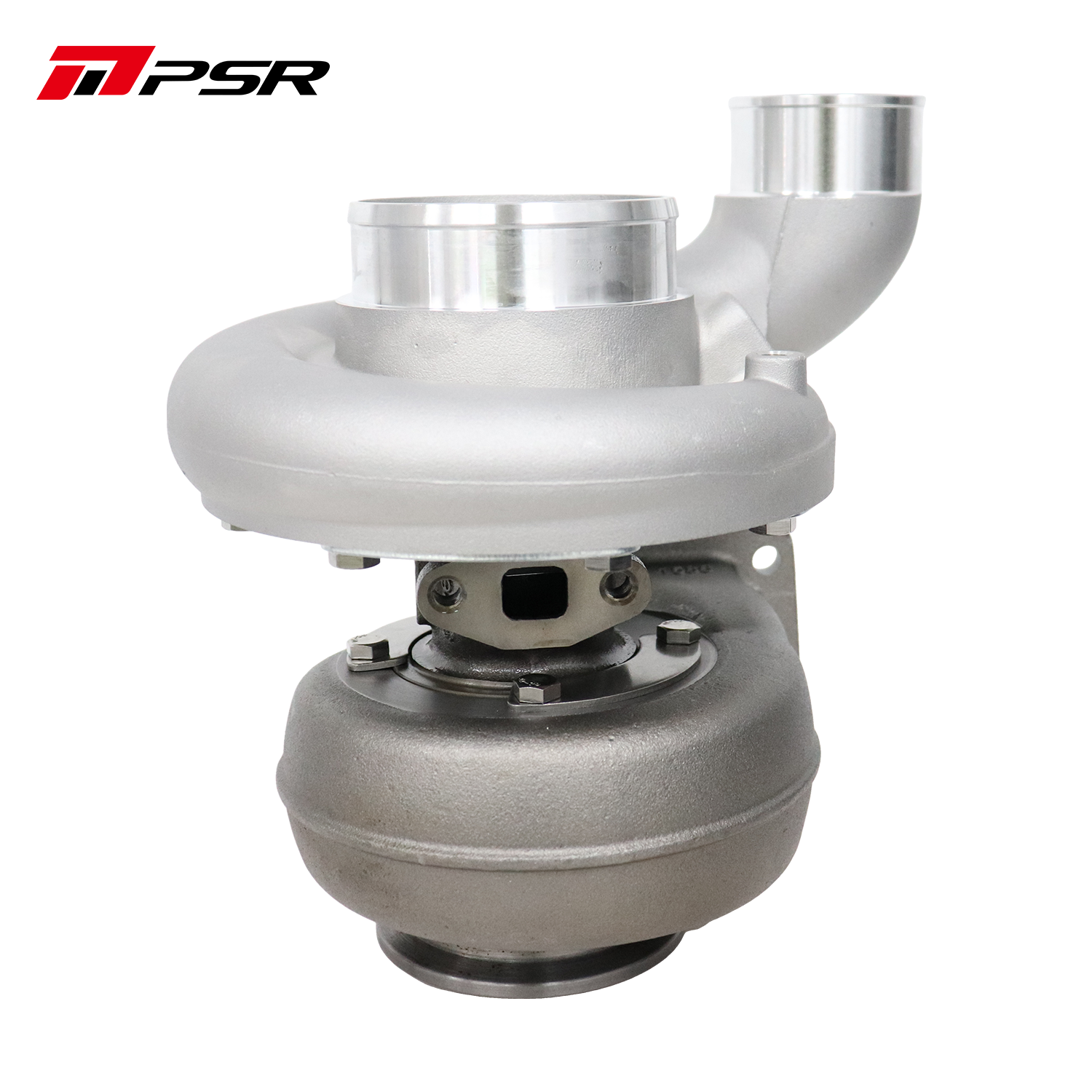

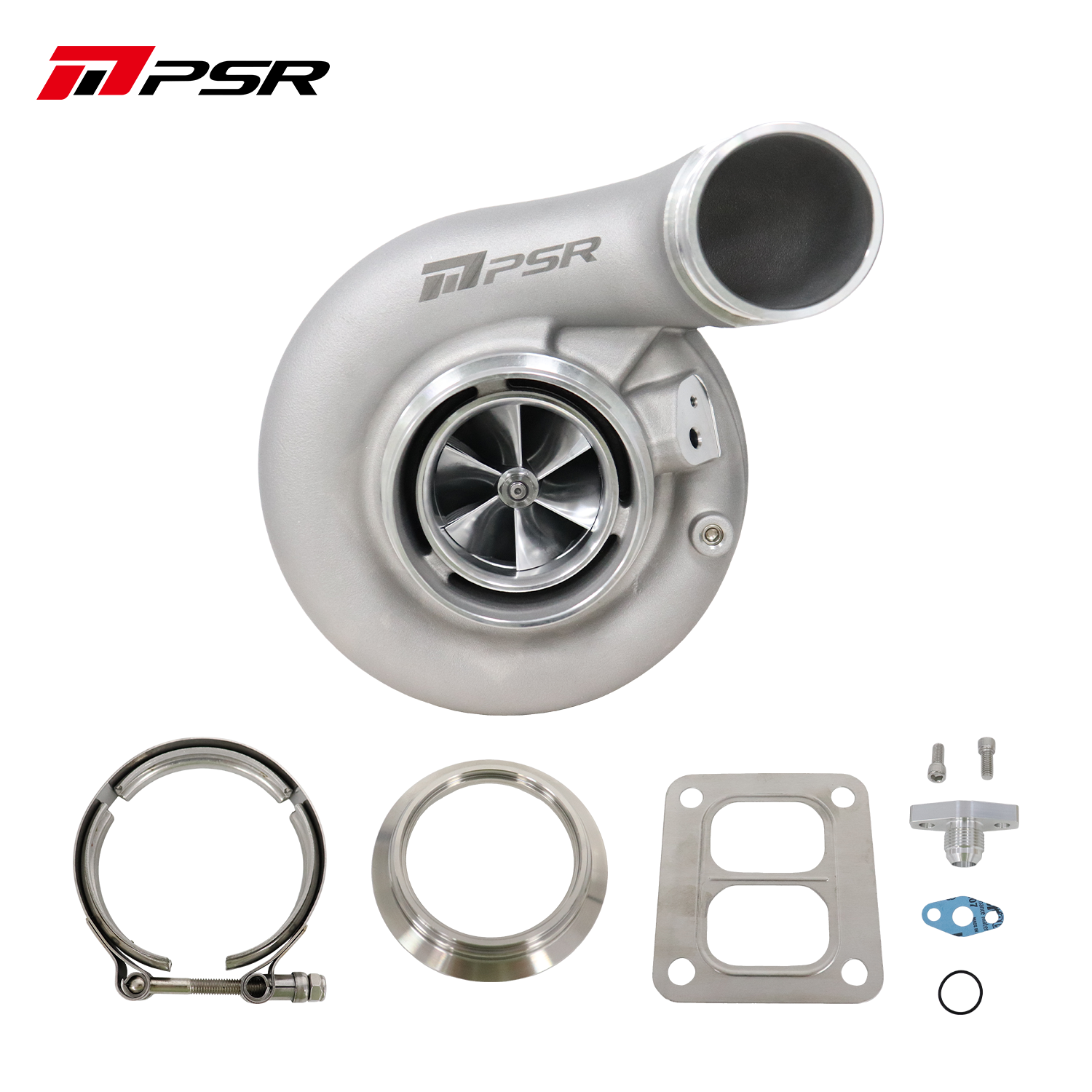

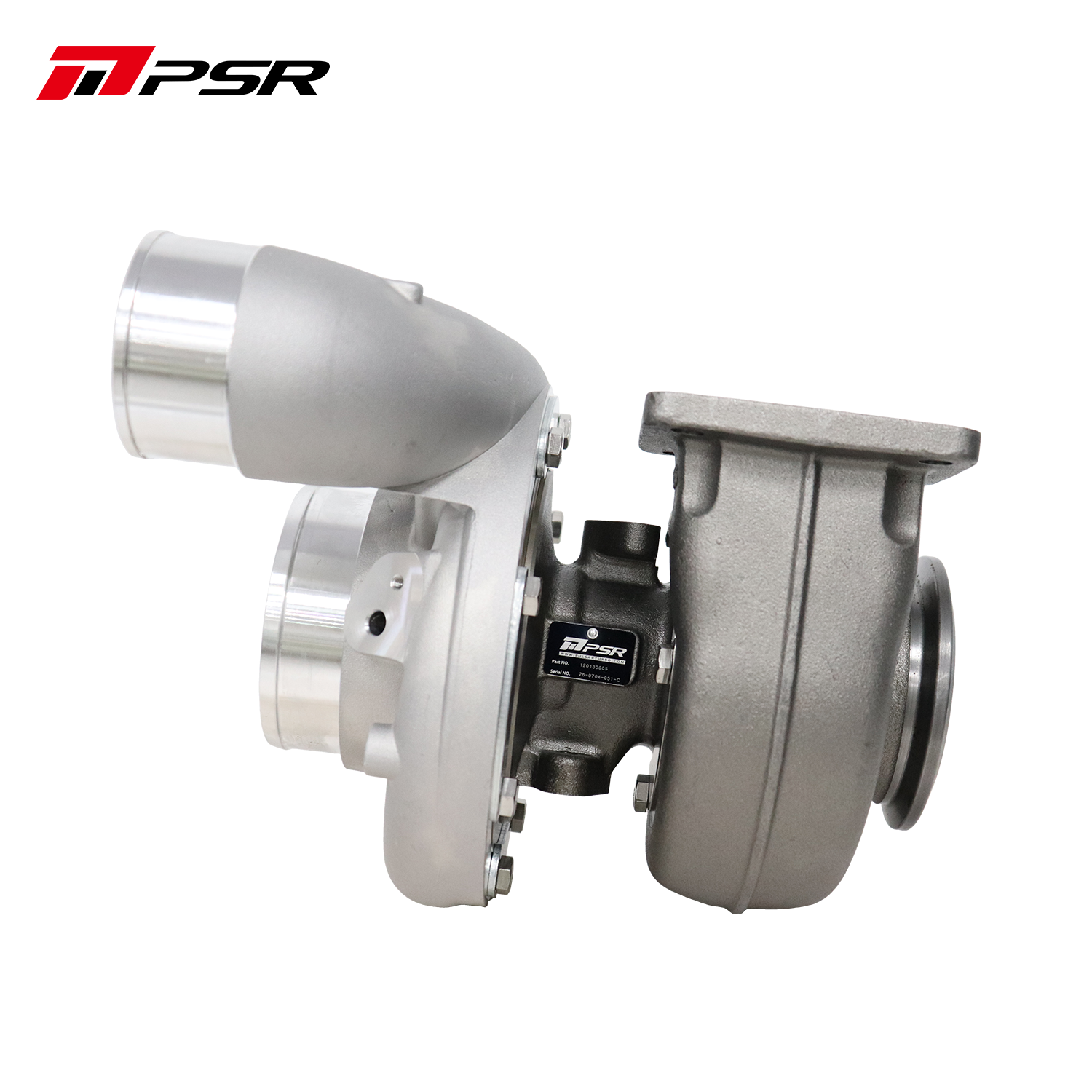

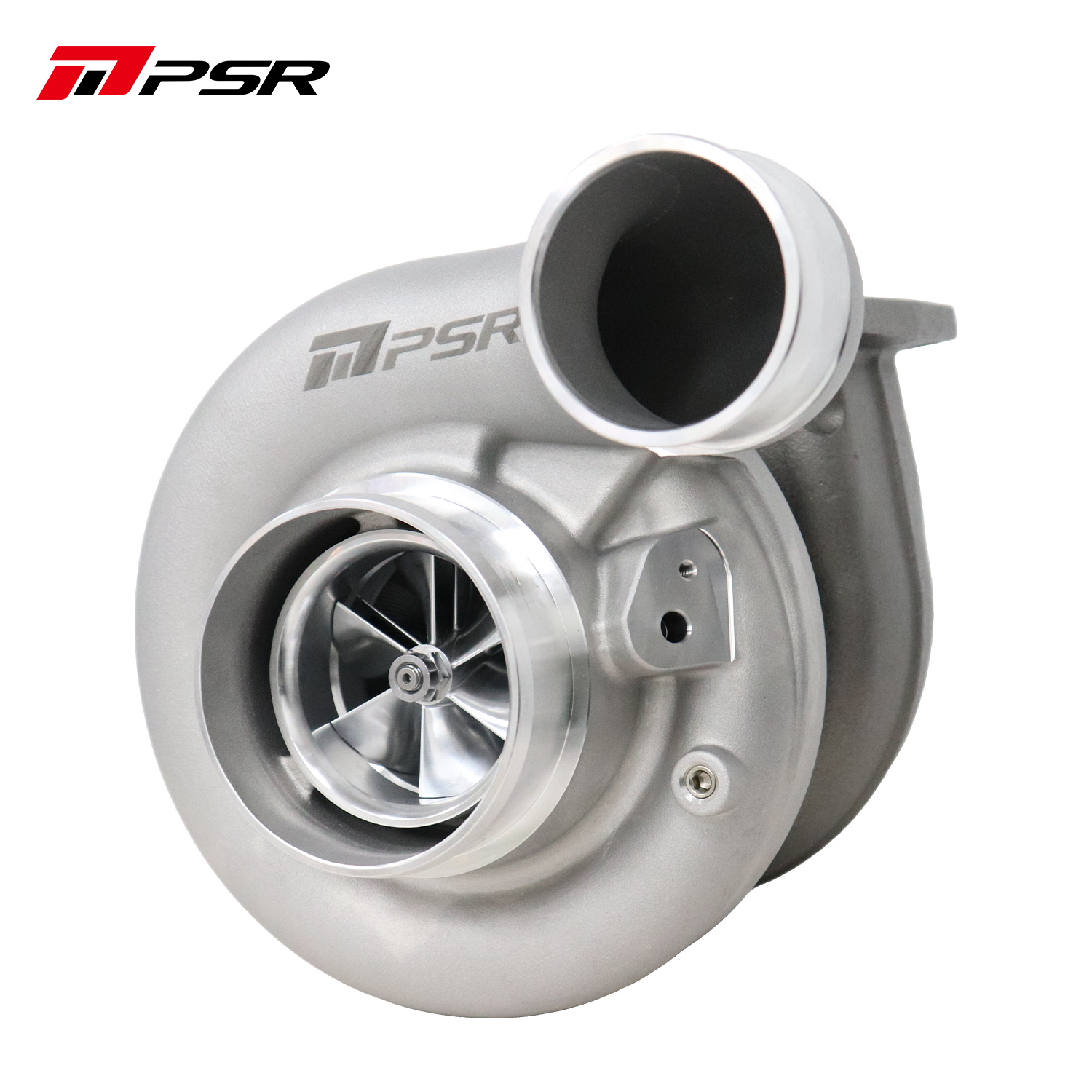

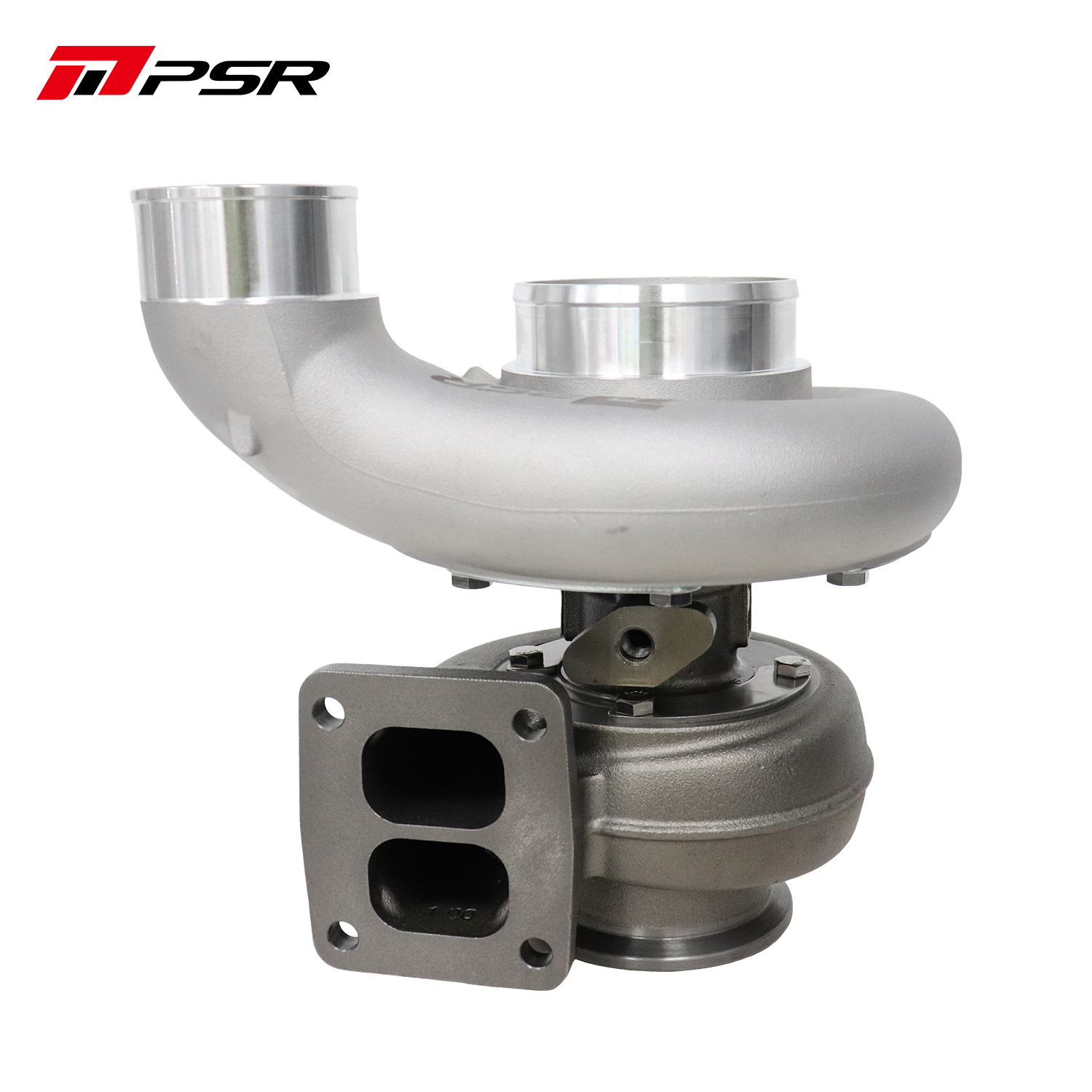

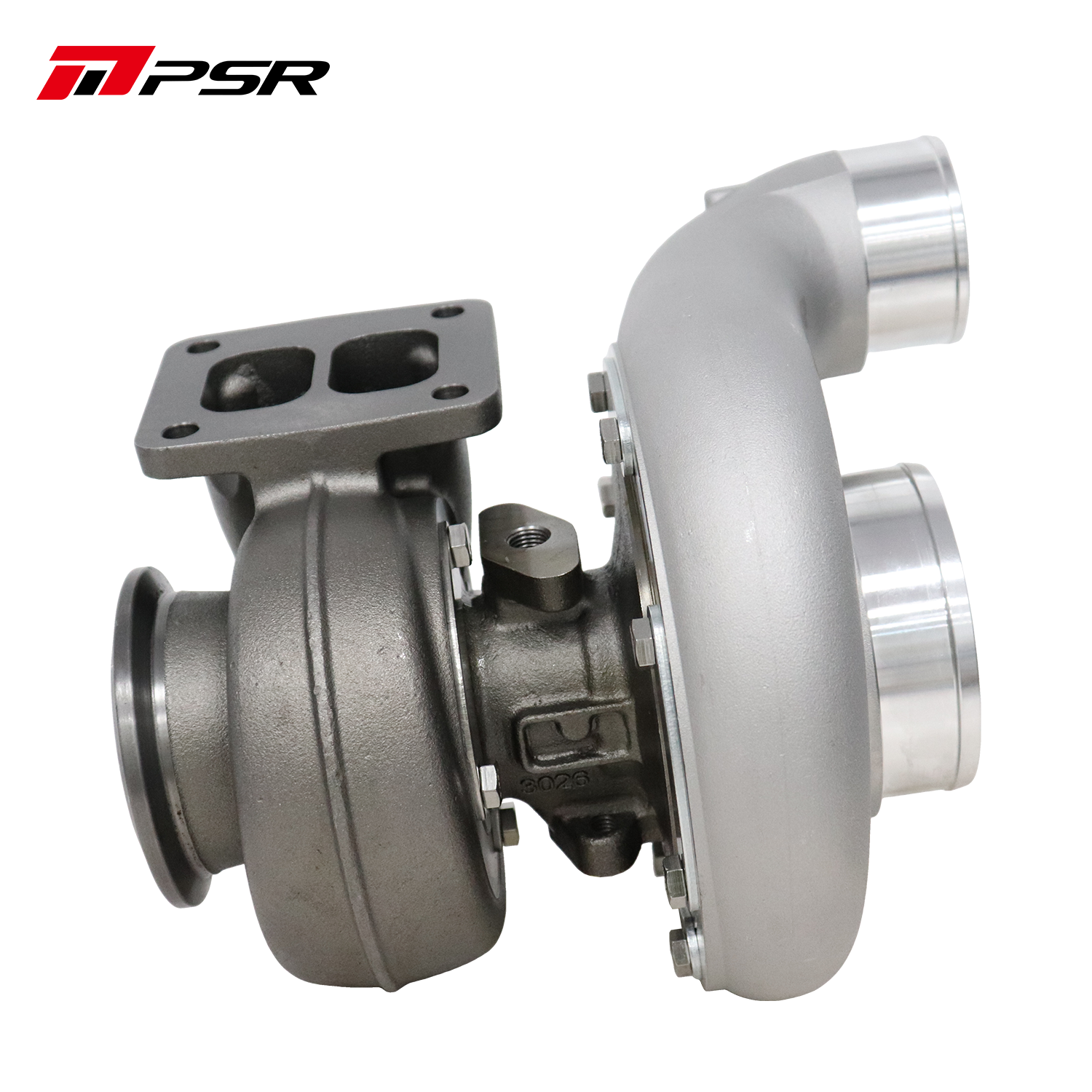

Pulsar Billet 363 366 369 Journal Bearing Turbo with 90° Elbow Outlet Compressor

$399.99$519.99

  • 3 options in Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 80*73mm Turbine Wheel
  • Compressor cover with ported-shroud inlet and integrated with the speed sensor port
  • Max Flow Rate: 100+ lb/min, rated @ 950FWHP
SKU: N/A Categories: , Tags: ,

Description

  • Compressor Wheel: 363(63*87mm, 7+7), 366(66*91mm, 7+7), 369(69*94mm, 6+6)
  • Turbine Wheel: 80*73mm, 76*67.5mm
  • Compressor Inlet: 4.0 Hose
  • Compressor Outlet: 90° Elbow 2.5 Hose
  • Turbine Inlet: T4 Divided 0.91A/R, T4 Open 0.88A/R
  • Turbine Outlet: 4.21″ Marmon
  • Oil Feed: 1/4″ NPT
  • Oil Drain: Std T4 Flange

Additional information

Compressor Wheel Options

363(63*87mm, 7+7), 366(66*91mm, 7+7), 369(69*94mm, 6+6)

Turbine Wheel Options

80*73mm, 76*67.5mm

Turbine Housing Options

T4 Divided, 0.91A/R, T4 Open, 0.88A/R, Without Turbine Housing
